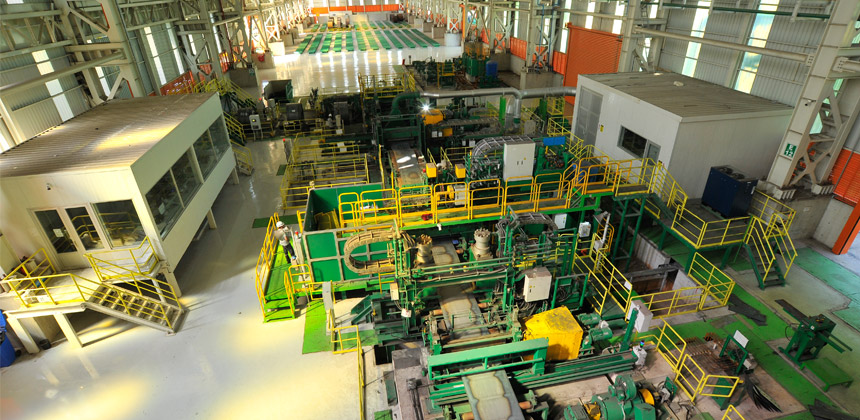

The Pickling Line and Tandem Cold Mill (PLTCM) consists of three main sections, namely the Pickling Section to clear the oxide layer off of the Strip surface; the Side Trimmer Section to trim the Strip edges; and the TCM Section for rolling to achieve the target thickness.
- PO: Pickled, Edged, and Lubricated Product
- TCM: Pickled, Edged, and Rolled Full Hard Product
| The PLTCM’s Features | |
| Supplier |
Primetal Technologies |
| Input Min – Max Thickness | 1,6 mm – 4,0 mm |
| Output Min – Max Thickness | 0,16 mm – 2,0 mm (TCM) 1,6mm – 4,0 mm (PO) |
| Min – Max Width | 700 mm – 1300 mm |
| Maximum Line Speed | 180 mpm (Pickling Speed) 1500 mpm (Rolling Speed) |
| Production Capacity | 1.000.000 t/year |
