The Tempered Cold Coils undergo tin plating in the Electrolytic Tinning Line. Tin plated reels (with similar or different tins) are produced on the bottom and top surface of the final strip after the following processes take place in the tinning line respectively: cleaning, pickling, electrolytic tin plating, induction heating, passivation, and oiling (badging can be applied on the bottom or top surface to show the tinning difference of the plates depending on the customer’s choice). The Tosyalı Toyo Tin Plated Flat Steel (tin) products are produced under two main categories, i.e. Single Reduction and Cold Reduction. The tin-plated flat steel produced is delivered to the customers in the rolled or vertically cut form.

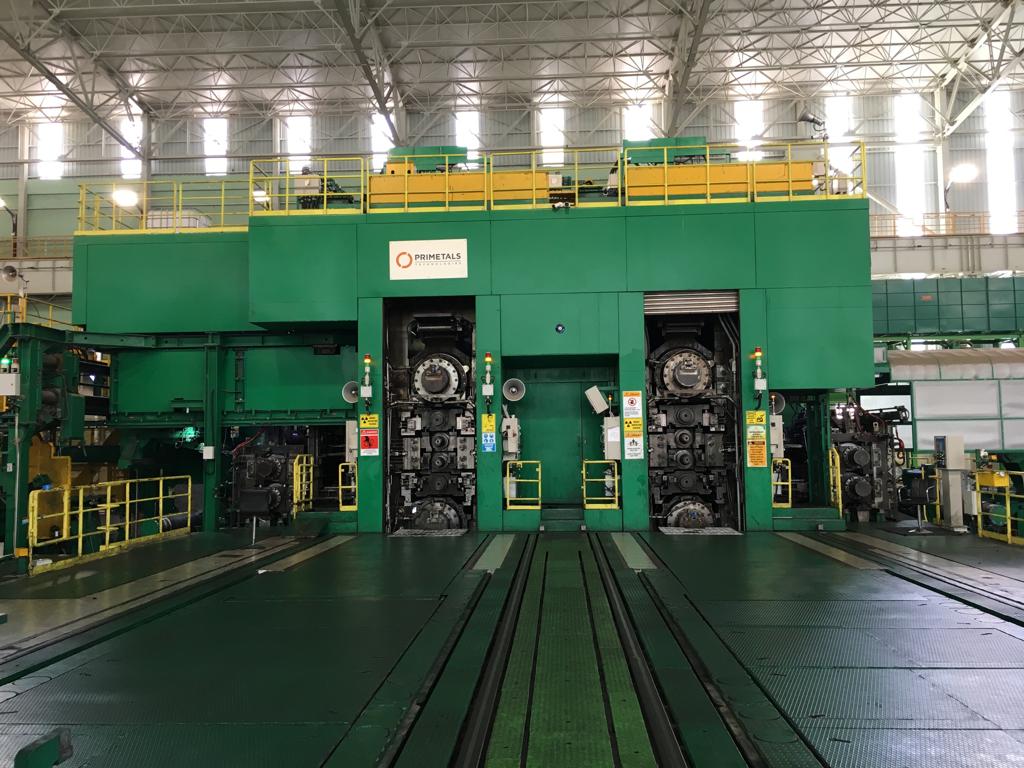

| About the TEMPER-DCR Line Features; | |
| Founding Company | Primetals Co. |
| Capacity | 303.000 tons/year |
| Max. Coil Weight | 20 tons |
| Strip Width | 700-1300 mm |
| Strip Thickness (Temper) |
0.16 – 1.2 mm |
| Strip Thickness (DCR) | 0.18 – 0.4 mm |
| Coil Inner Diameter | 508 mm |
| Coil Outer Diameter | 1.000 - 2.100 mm |
| Max. Line Speed | 1500 mpm |
| Steel Quality | T1 - T5, DR6 - DR10 ve CR Full Hard |
