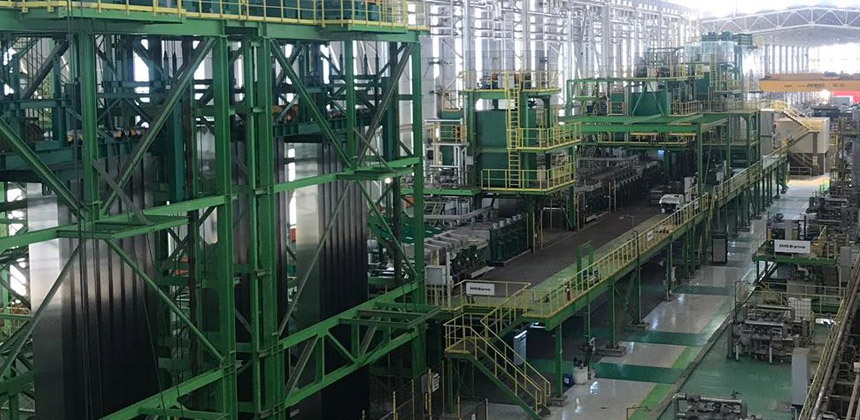

The Tempered Cold Coils undergo tin plating in the Electrolytic Tinning Line. Tin plated reels (with similar or different tins) are produced on the bottom and top surface of the final strip after the following processes take place in the tin plating line respectively: cleaning, pickling, electrolytic tin plating, induction heating, passivation, and oiling (badging can be applied on the bottom or top surface to show the tinning difference of the plates depending on the customer’s choice). The Tosyalı Toyo Tin Plated Flat Steel (tin) products are produced under two main categories, i.e. Single Reduction and Cold Reduction. The tin-plated flat steel produced is delivered to the customers in the rolled or vertically cut form.
| About the ETL Features; | |
| Founding Company | SMS Group |
| Capacity | 255.000 tons/year |
| Max. Coil Weight | 20 tons |
| Strip Width | 700 – 1270 mm |
| Strip Thickness |
0.12 - 0.60 mm |
| Coil Inner Diameter | 406 , 420 , 508 mm |
| Coil Outer Diameter | 1.000 - 2.100 mm |
| Max. Line Speed | 450 mpm |
| Steel Quality | T1 - T5 ve DR6 - DR10 |
| Tin Plating | 1.1 / 2.8 / 5.6 / 8.4 / 11.2 gr/m² |
